Pinoy Transporter

The Next Generation Electric Jeepney

Drive the future of clean, efficient public transport.
The Pinoy Transporter is a 100% electric, zero-emission e-Jeepney engineered to deliver maximum passenger comfort, unmatched durability, and cutting-edge technology. With a spacious 30-passenger capacity, smart interior features, and fast-charging capabilities, this vehicle is redefining urban mobility across Nigeria and beyond.

Features:

✅ High Passenger Capacity

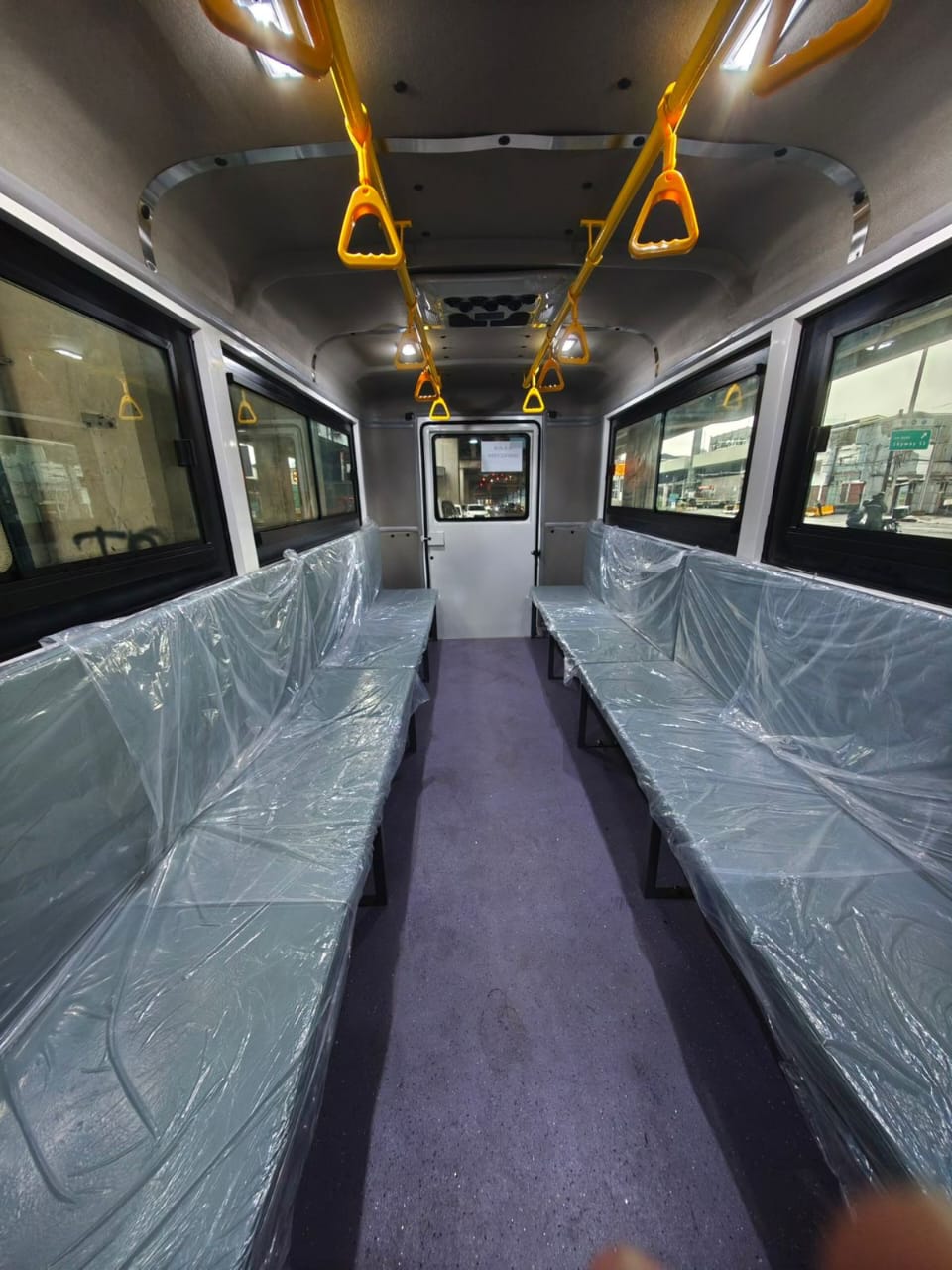

Accommodates up to 18 seated and 12 standing passengers, ensuring optimal efficiency for busy routes.

✅ Powerful Electric Drivetrain

A 70 kW Permanent Magnet Synchronous Motor delivers smooth acceleration and confident performance, with a top speed of 60 km/h.

✅ Long-Range Lithium Battery

Travel up to 150 km on a single charge—and up to 250 km under ideal conditions.

✅ Fast & Flexible Charging

Recharge from 20%–80% in just 1 hour with DC fast charging, or overnight with AC slow charging.

✅ Modern Passenger Comfort

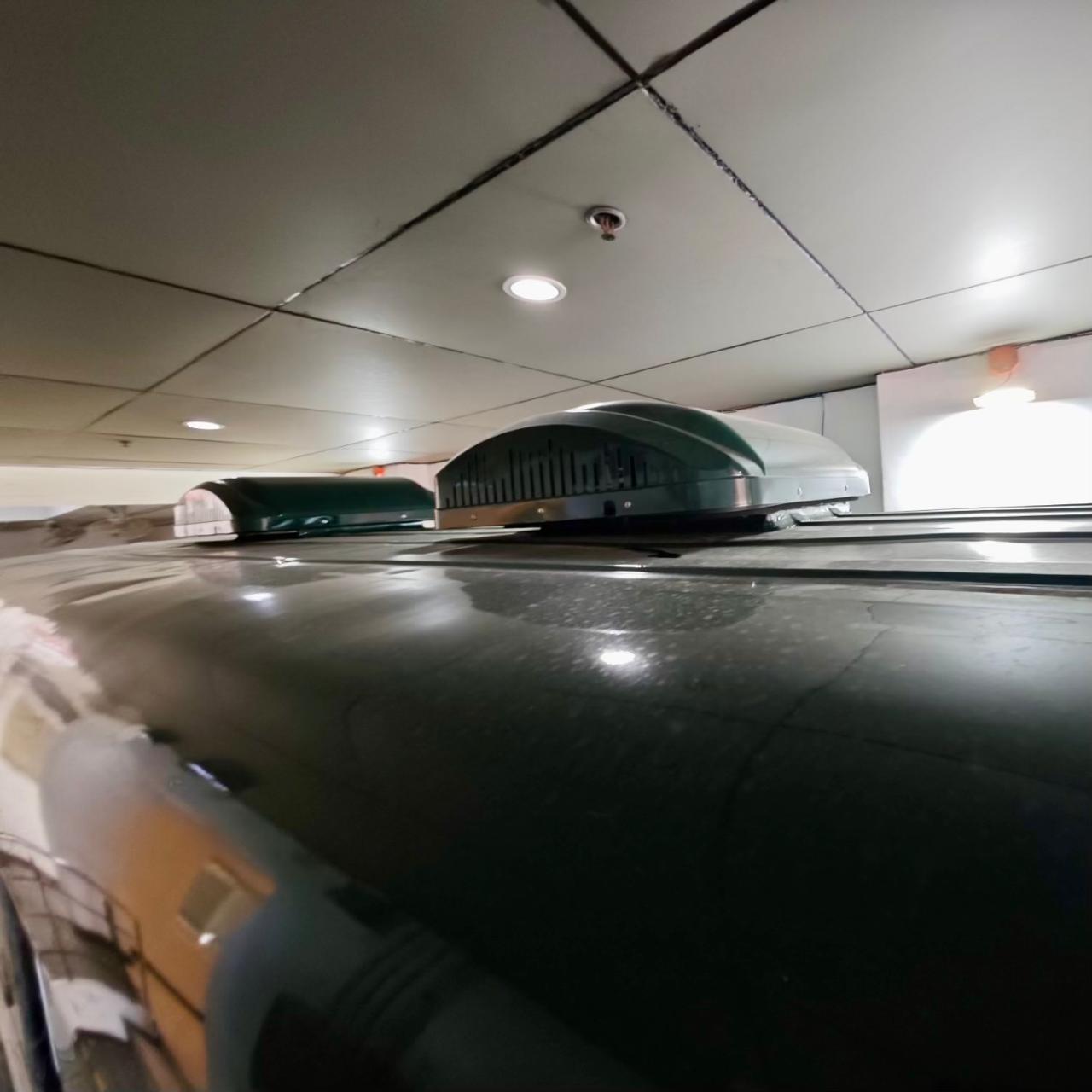

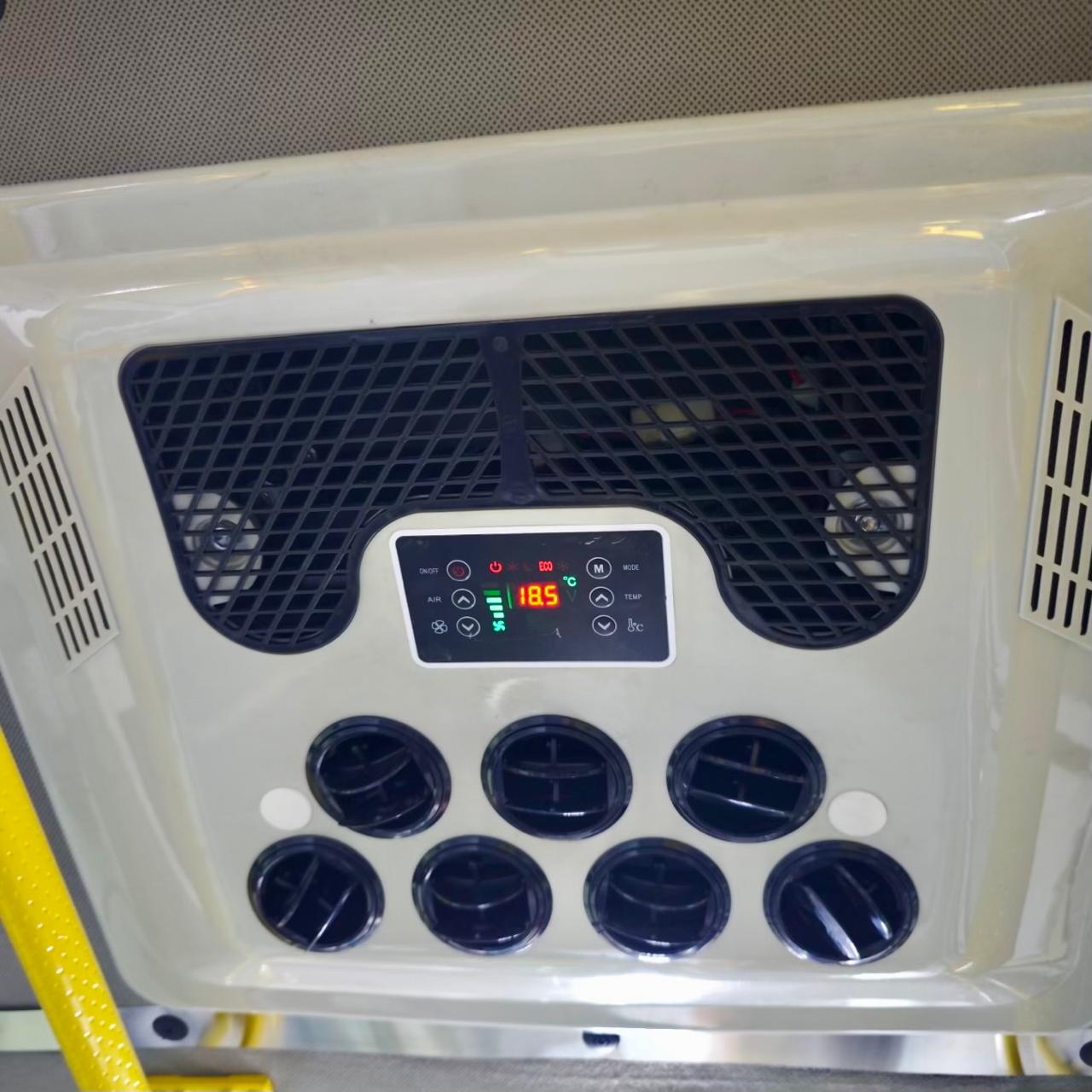

Triple air-conditioning system, ergonomic leather driver seat, high-strength composite insulation ceiling, and optional WiFi connectivity keep passengers comfortable and connected.

✅ Advanced Digital Dashboard

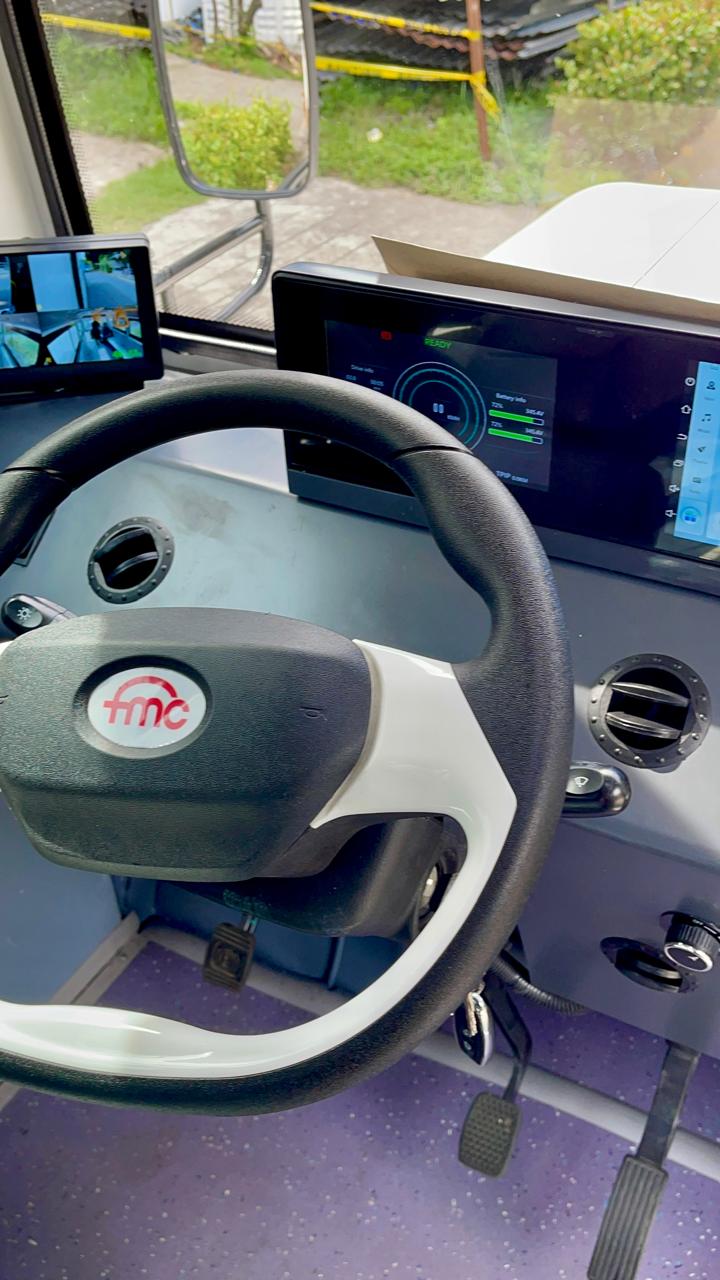

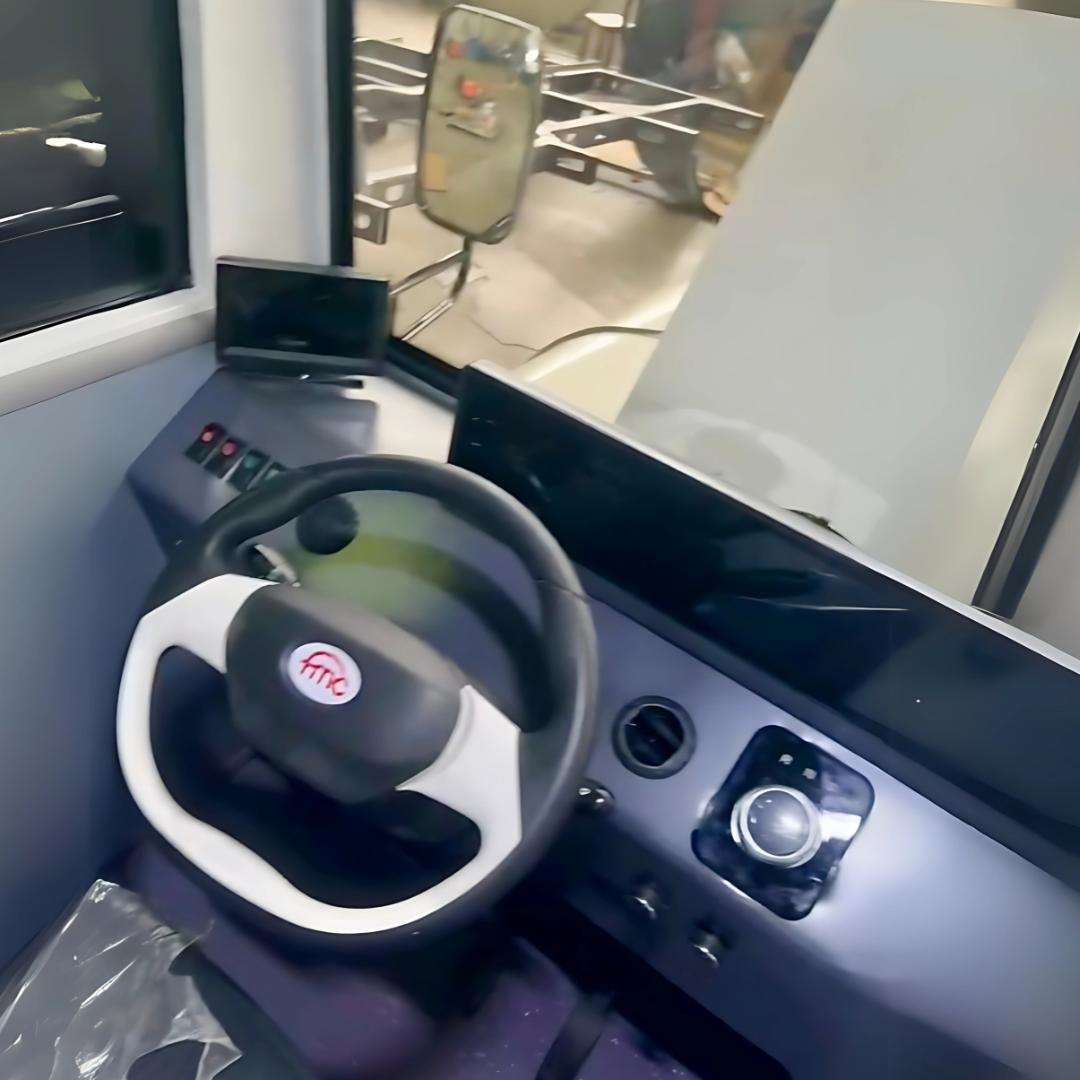

Full LCD instrument panel displays real-time speed, mileage, power, system diagnostics, and more.

✅ Safety & Compliance

Equipped with:

•IP67 waterproofing

•Fire extinguisher and early warning devices

•Reinforced composite body and dual-circuit hydraulic brakes

⚙️ Technical Specifications

•Motor: 35 kW rated / 70 kW max power

•Torque: 230 N·m max torque

•Battery: 50.232 kWh Lithium Iron Phosphate

•Charging:

•AC 7 kW Type 2 Slow Charger (5.5 hrs)

•DC 50 kW CCS2 Fast Charger (1 hr)

•Range: 150–250 km per charge

•Dimensions: 5883mm x 1843mm x 2646mm

•GVW: 3,600 kg

🚍 Applications

Ideal for:

•Urban mass transit

•Intra-city fleet services

•Airport shuttle operations

•Private corporate transport

🔒 Warranty & Support

•Drivetrain: 3 years / 100,000 km

•Battery: 5 years / 150,000 km

•Ongoing technical support and parts availability

Ready to Electrify Your Fleet?

Explore the Pinoy Transporter

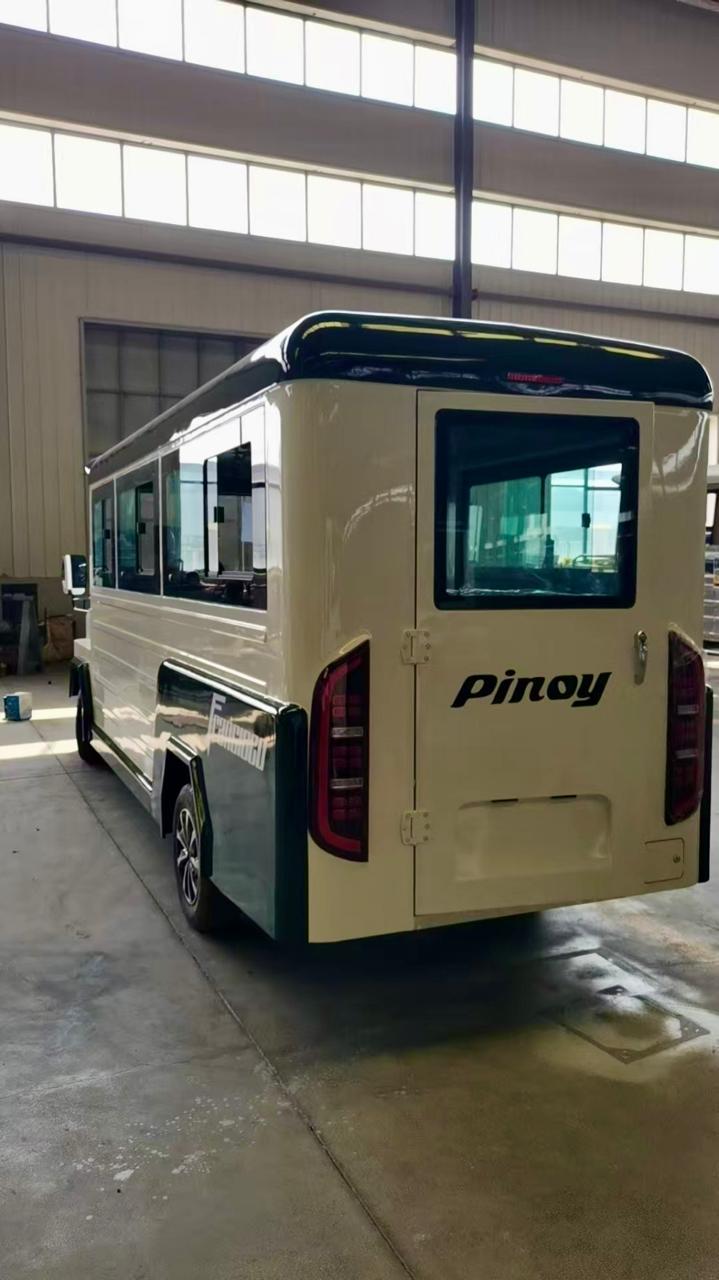

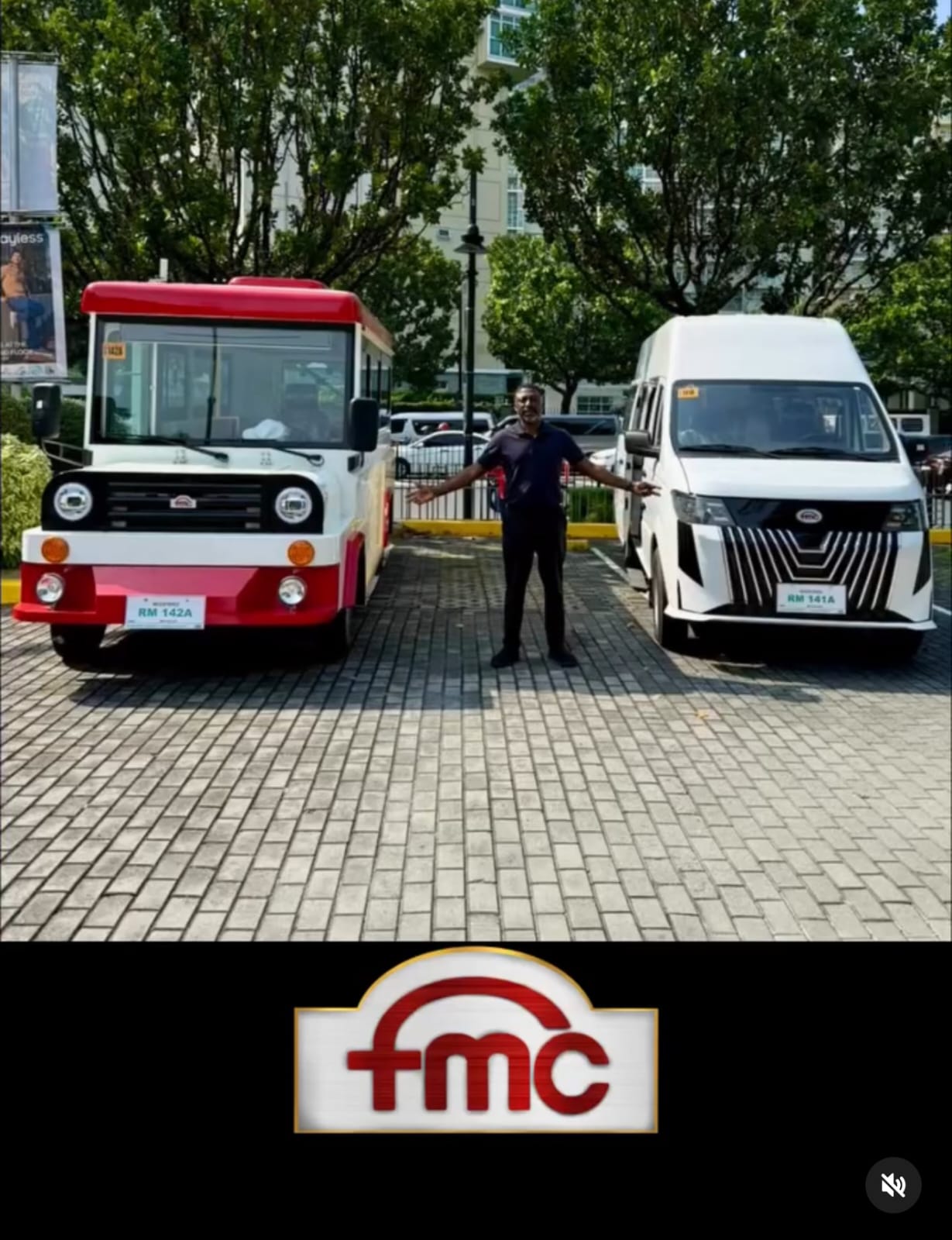

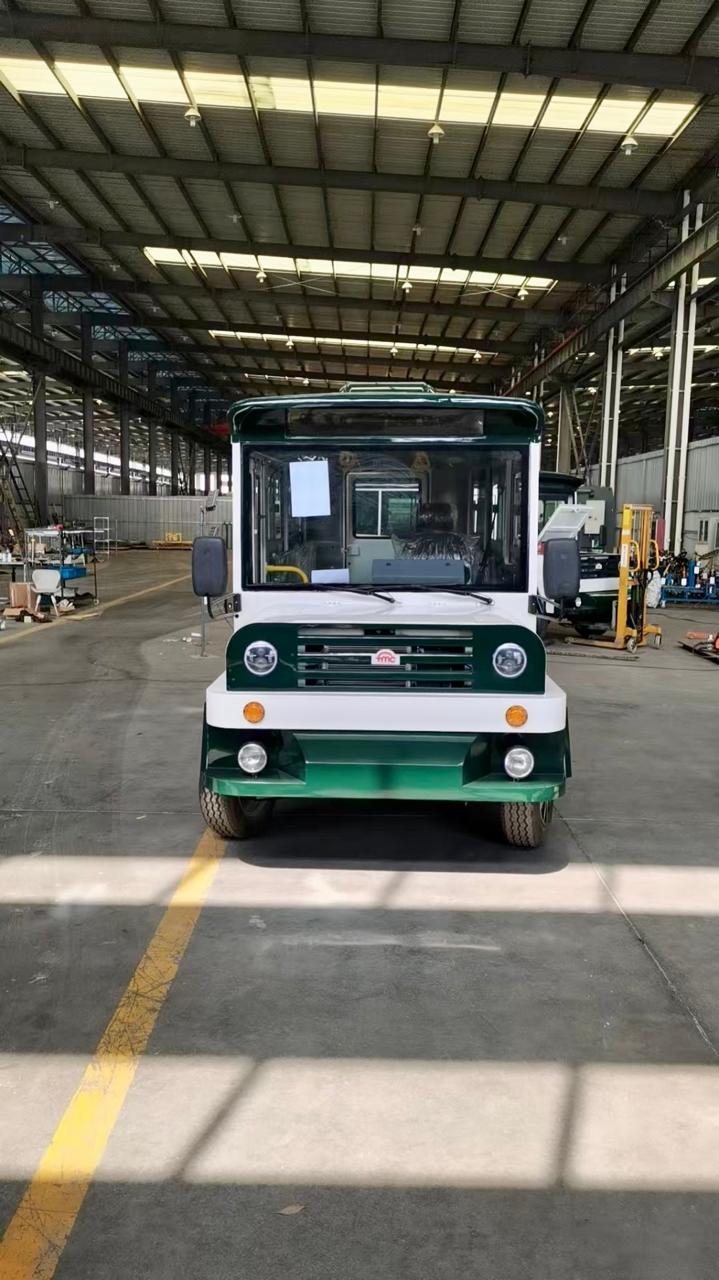

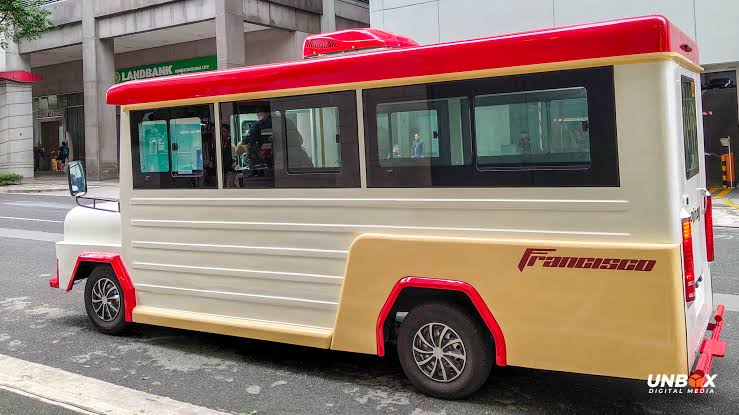

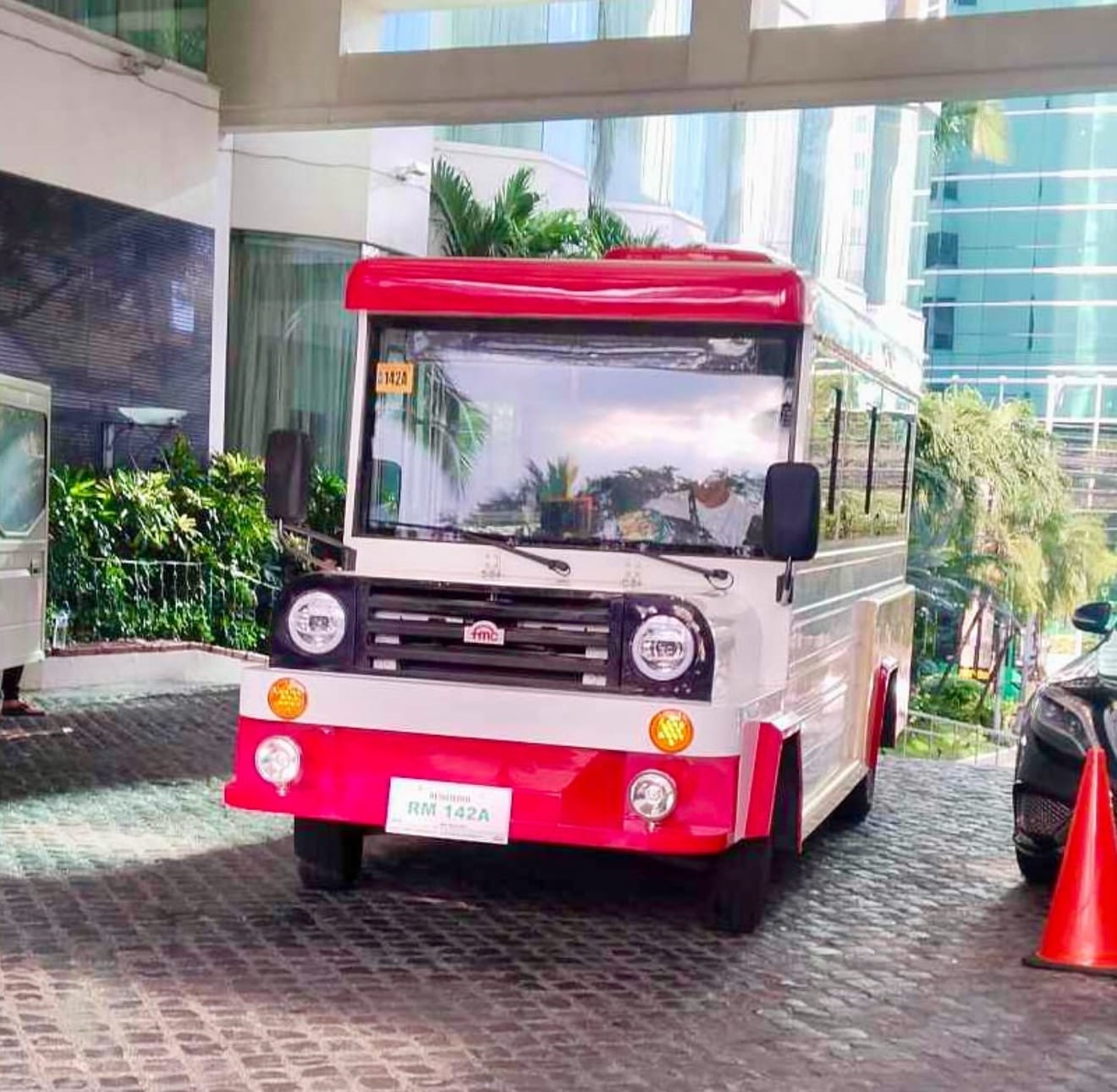

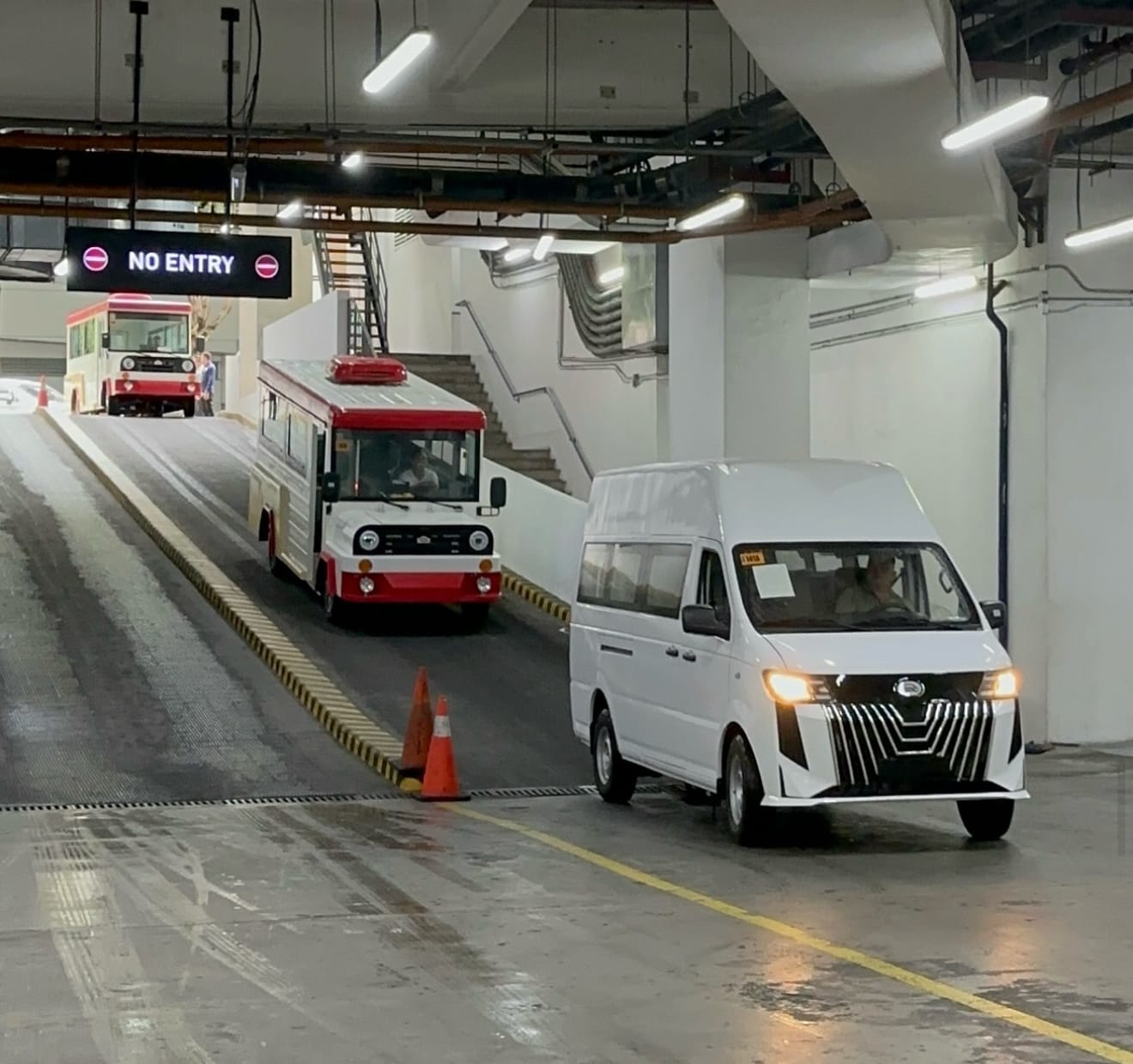

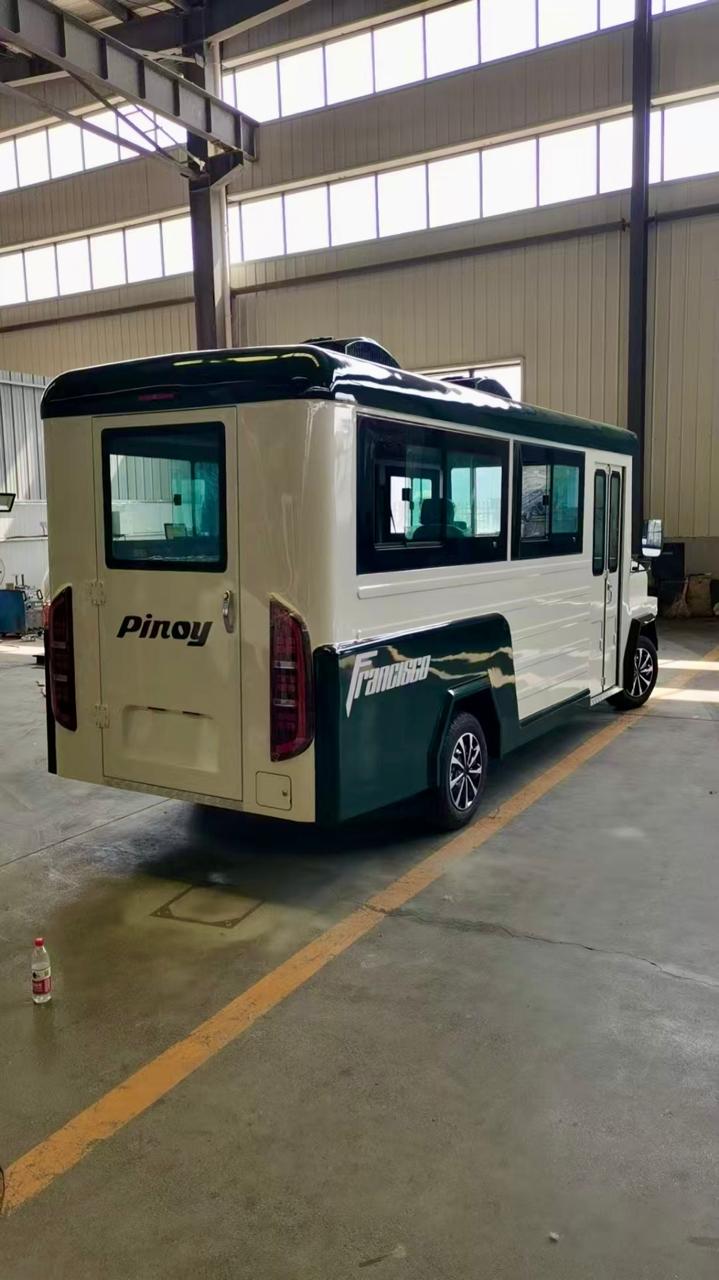

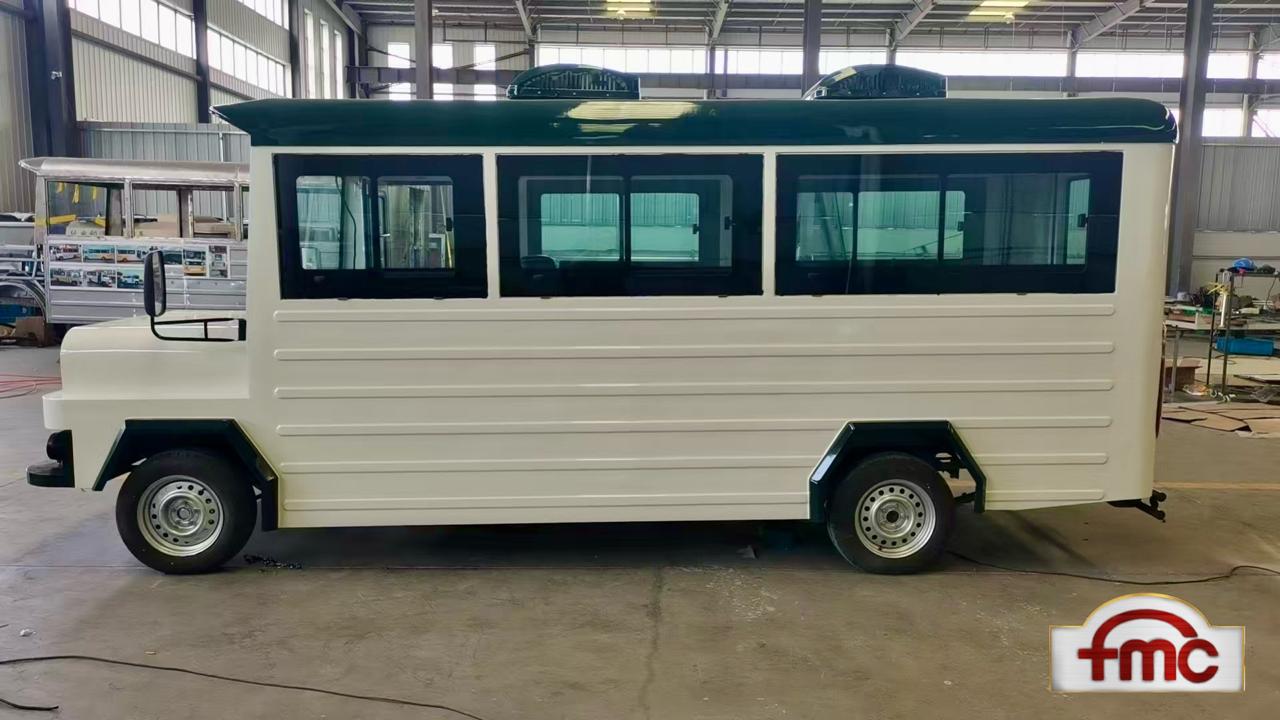

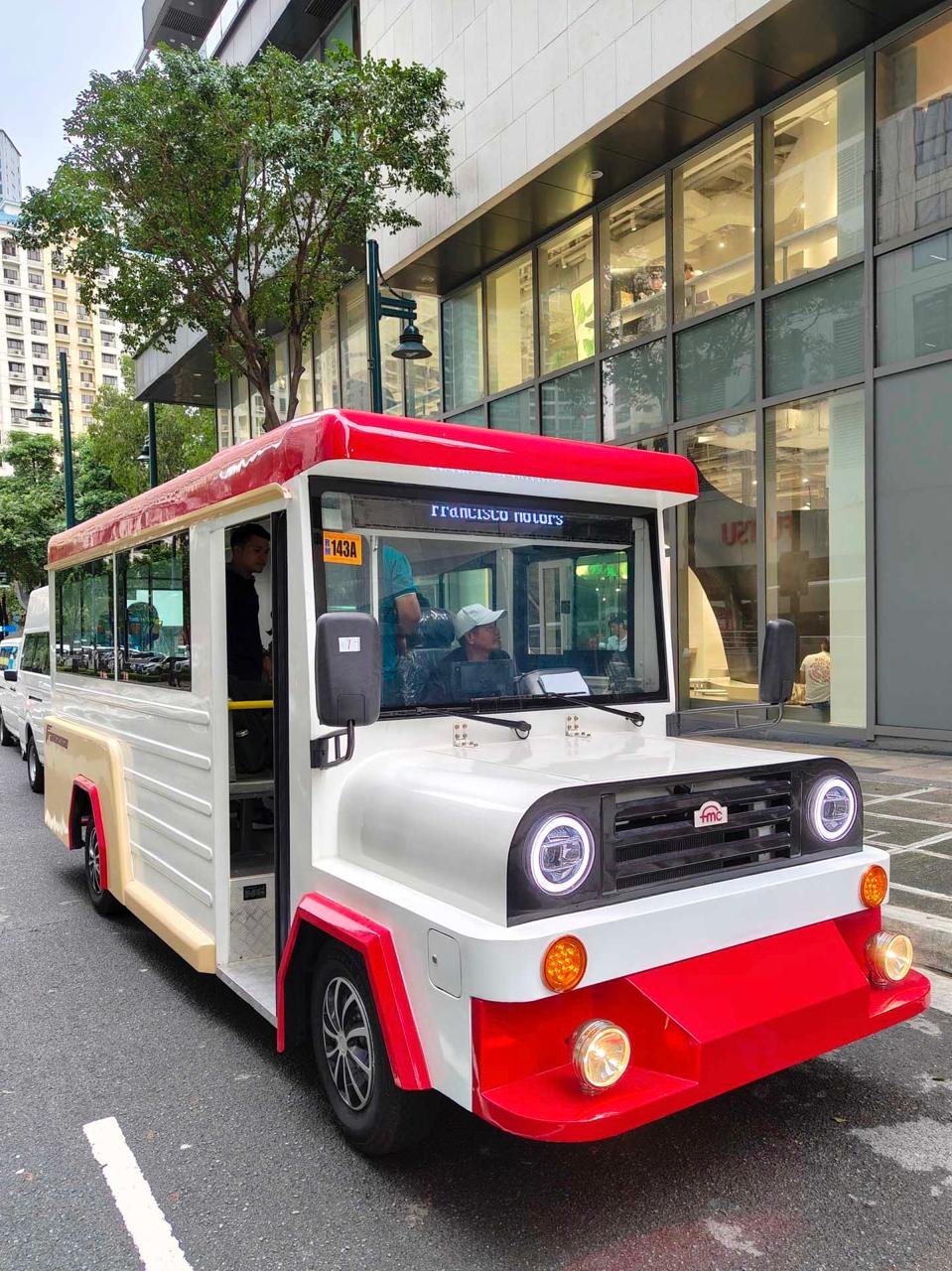

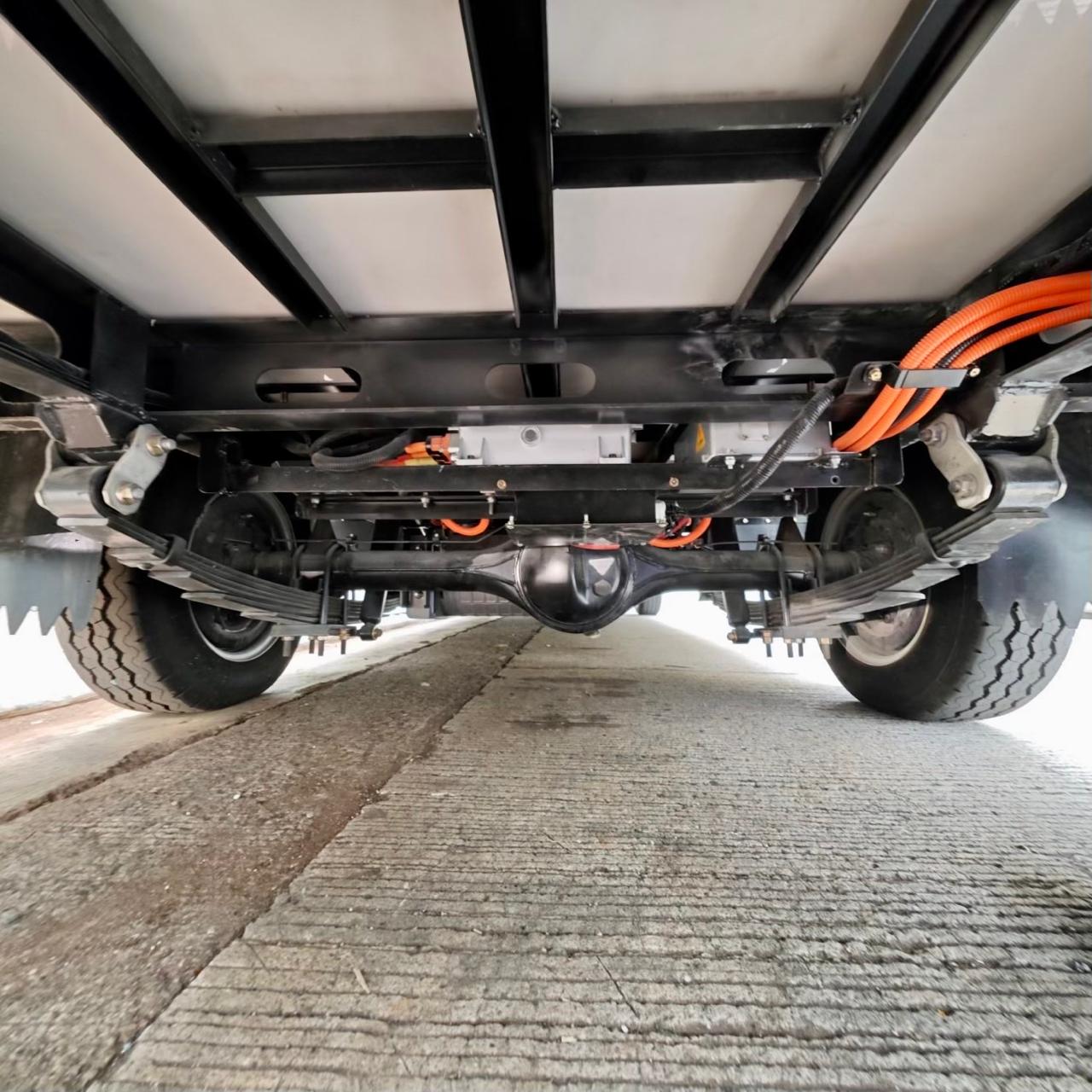

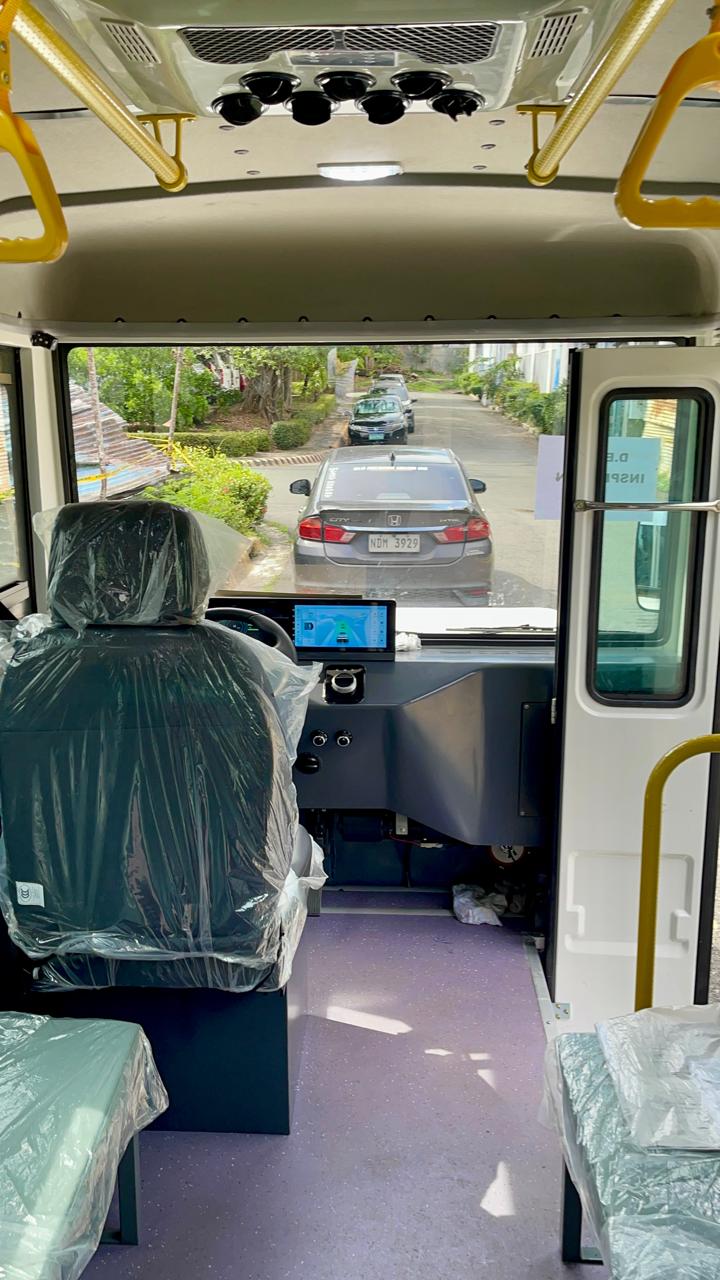

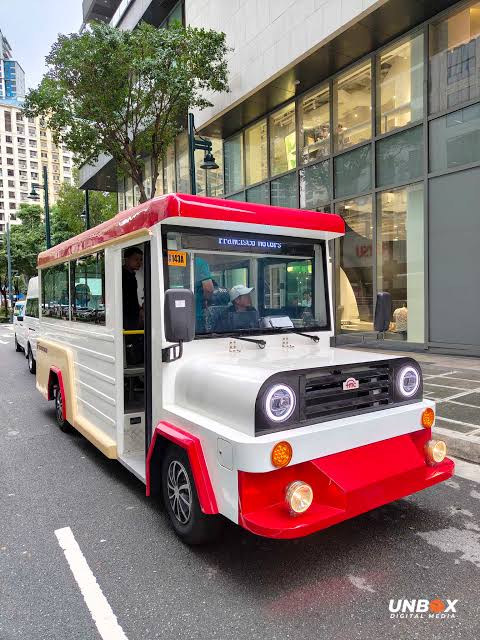

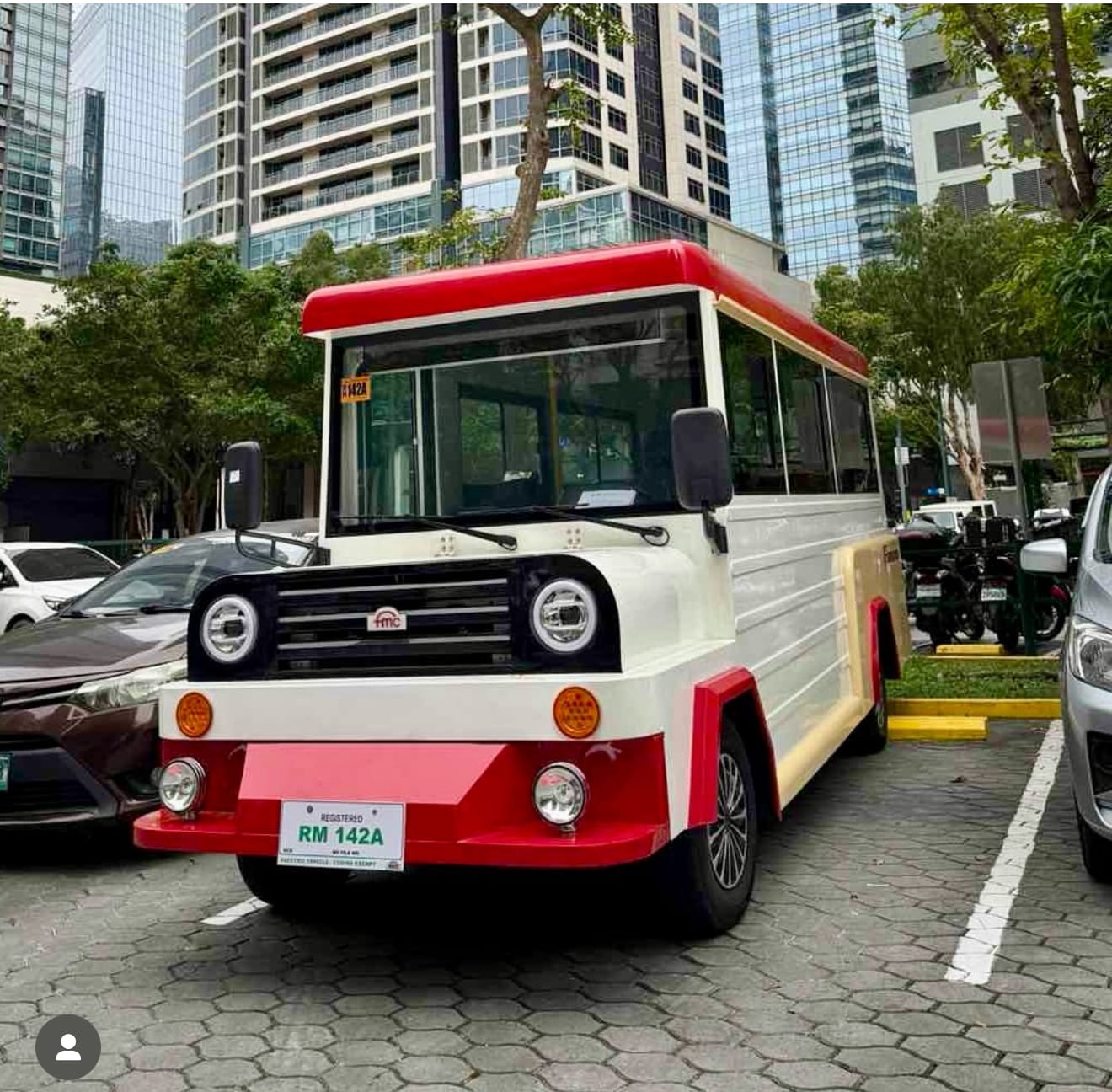

Get a closer look at the Pinoy Transporter’s advanced design, spacious interior, and durable build. Our gallery showcases key features, comfort details, and modern engineering that define this next-generation electric vehicle.
